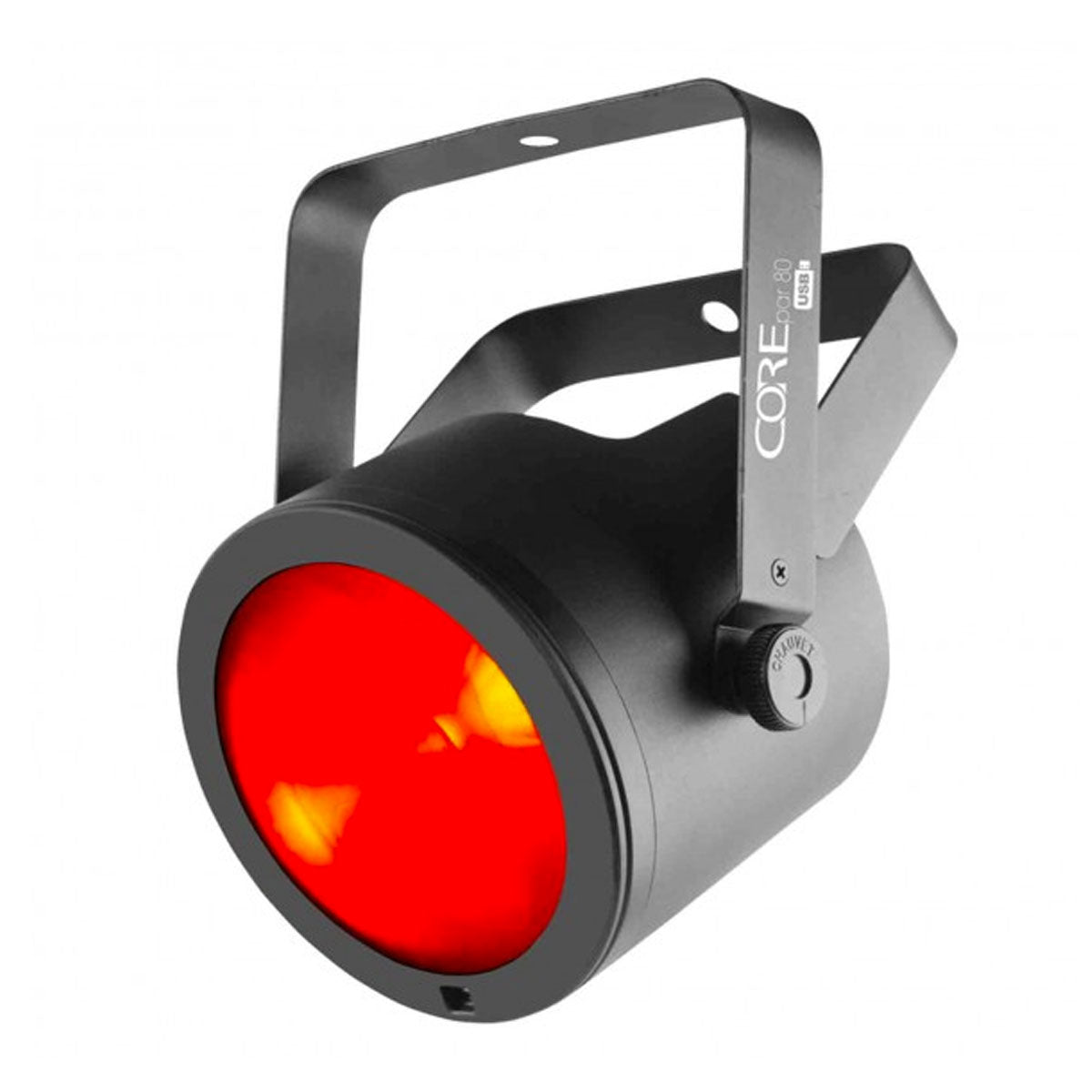

Chauvet COREpar 80 USB

Chauvet COREpar 80 USB

$1,850.00 TTD
$1,850.00 TTD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Full Spectrum mixing with Chip-on-Board



COREpar 80 USB produces a full spectrum of light with the unsurpassed color mixing of COB (Chip-on-Board) technology and includes a separate magnetic lens to provide the flexibility to go from an ultra-wide wash to a narrow beam in seconds.



High frequency LED dimming achieves smooth LED fades and ensures a flicker-free performance in video applications. Multiple control options include DMX, master/slave, and sound activation modes as well as wireless control thanks to D-Fi USB compatibility. Point-and-shoot operation of static colors and automated programs is also possible with the optional IRC-6 remote control (sold separately). The unit’s robust sit-flat housing features power and DMX outlets on the side.






  • COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing




  • D-Fi USB compatibility for wireless Master/Slave or DMX control




  • Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds




  • Withstand the harshness of traveling from gig to gig with a robust housing




  • Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit




  • Achieve flicker-free video operation with high-frequency LED dimming




  • Save time running cables and extension cords by power linking multiple units




  • Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote




  • Multiple control options include DMX, Master/Slave and Sound-Active modes




  • Create customized colors using the built-in LED display




  • Achieve smooth LED fading with built-in dimming curves




  • Easily transports in the optional CHS-30 VIP Gear Bag




  • Compact design easily fits inside sticks of TRUSST®





    • DMX Channels: 3 or 8

    • DMX Connectors: 3-pin XLR

    • Light Source: 1 COB LED (tri-color RGB) 80 W, (2 A), 50,000 hours life expectancy

    • Strobe Rate: 0 to 33 Hz

    • PWM Frequency: 2,000 Hz

    • Beam Angle: 70° (without lens)

      25° (with lens)

    • Field Angle: 90° (without lens)

      40° (with lens)

    • Illuminance: 405 lux @ 2 m (without lens)

      2,143 lux @ 2 m (with lens)

    • Power Linking: 7 units @ 120 V; 13 units @ 230 V

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current: 75 W, 1.1 A @ 120 V, 60 Hz

      72 W, 0.6 A @ 230 V, 50 Hz

    • Weight: 4.2 lb (2.0 kg)

    • Size: 7.9 x 5.6 x 9.9 in (200 x 143 x 253 mm)

    • Approvals: CE

    • Optional Controllers: IRC-6, D-Fi USB







    WHAT'S INCLUDED




    • Power cord

    • Magnetic Fresnel lens

    • Warranty card

    • Quick Reference Guide

    • Hanging bracket with mounting
