BOLD SOUND. HIDDEN IN PLAIN SIGHT.

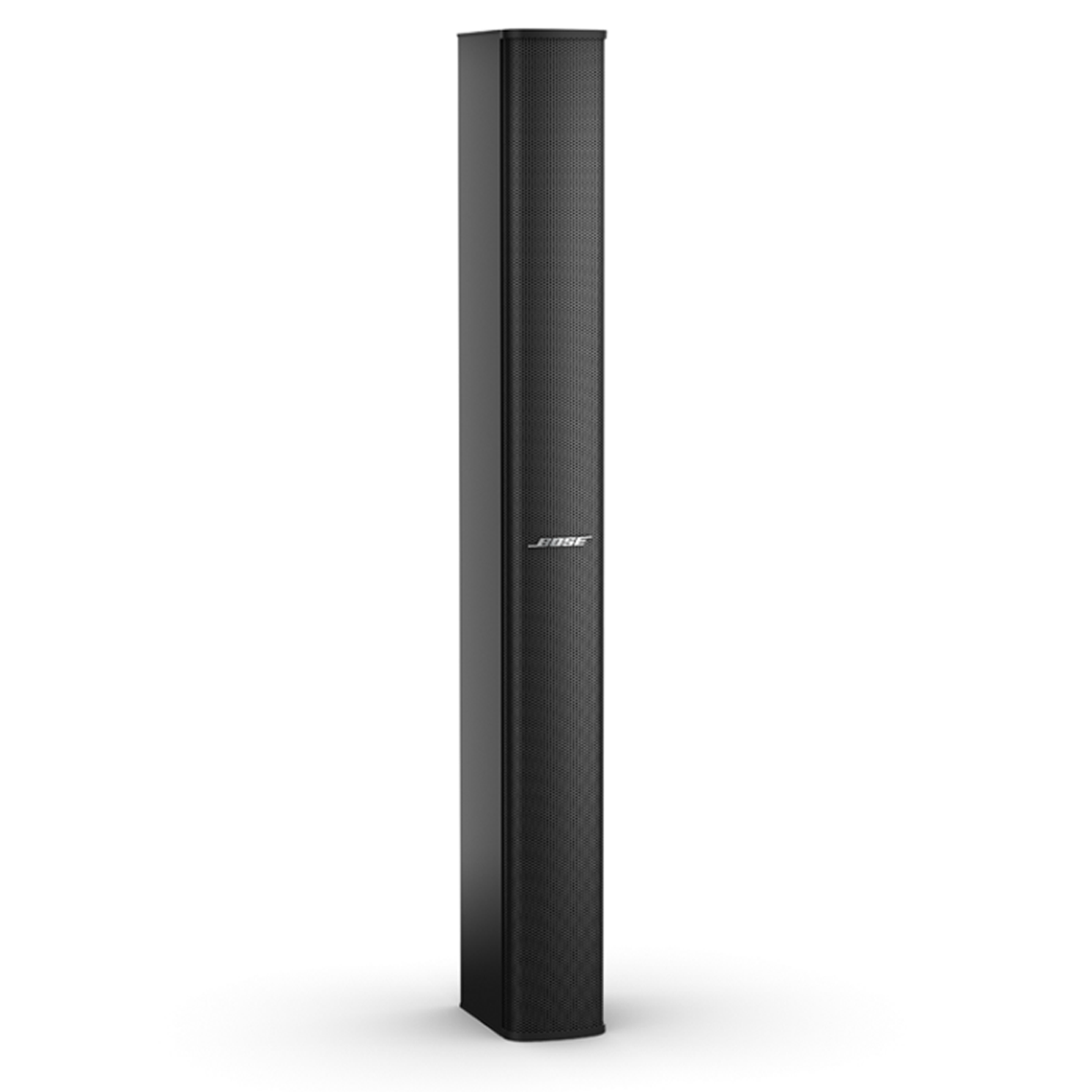

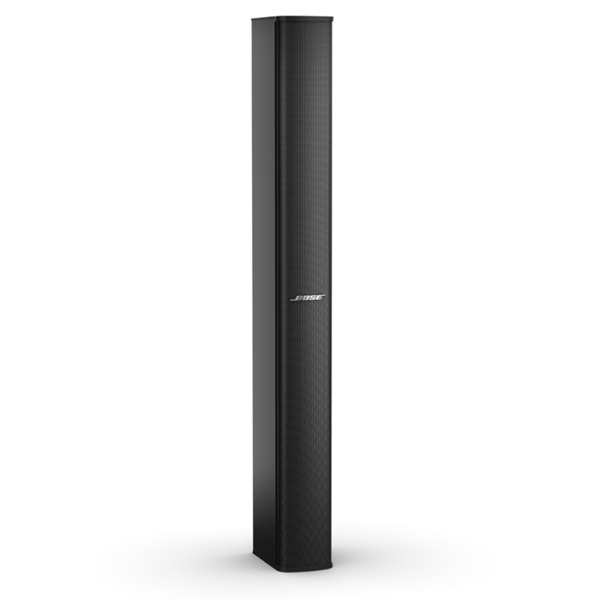

Aself-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array® transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X’s modular design allows building of vertical arrays using 1-3 units. Dante digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.

Applications

\n

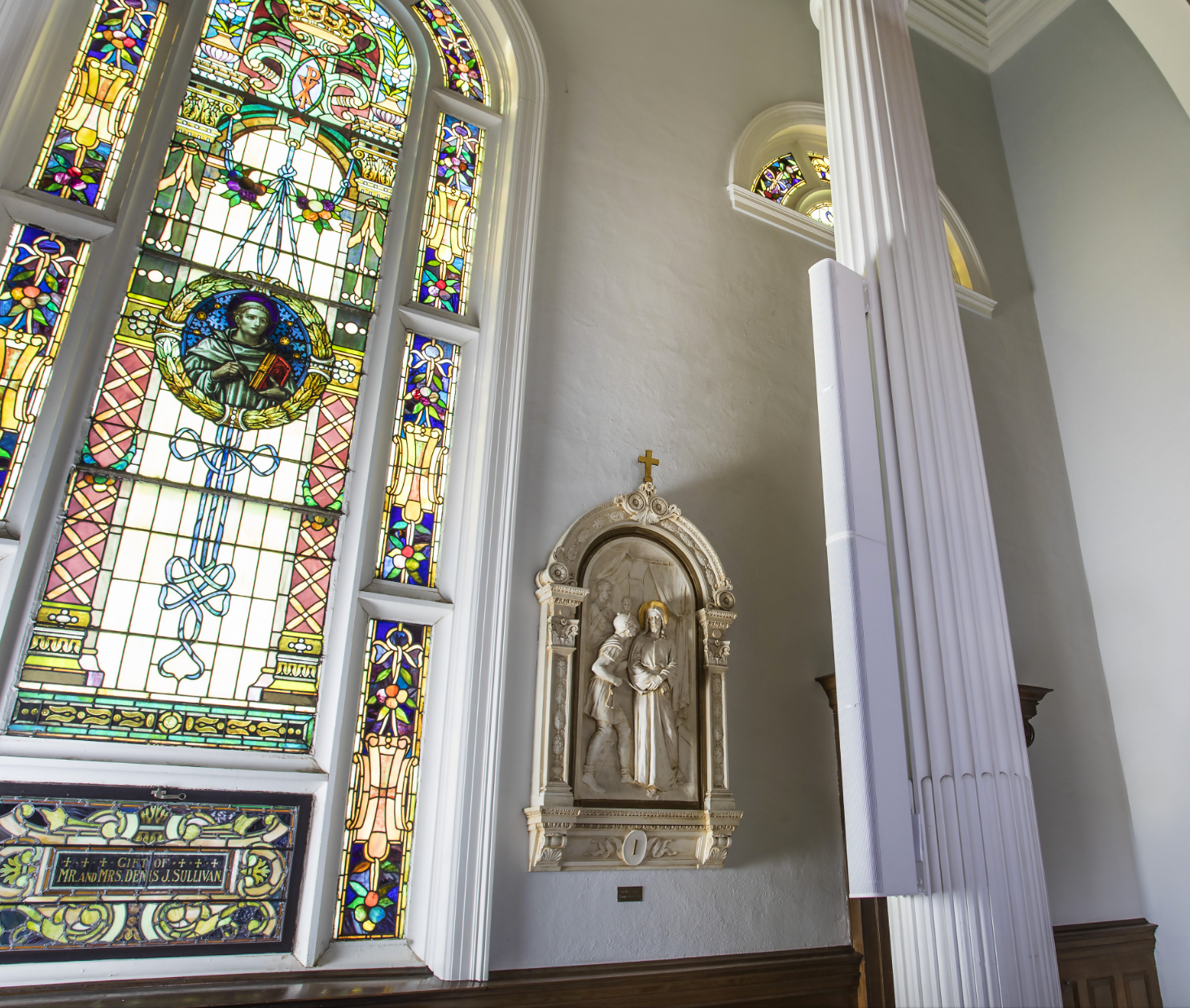

• Houses of worship
\n
• Auditoriums
\n
• Transportation facilities
\n
• Conference Rooms
\n
• Lecture Halls
\n

Includes

\n
• (1) Power Cord
\n
• (1) Power interconnect cable
\n
• (1) RJ50 Expansion Cable
\n
• (1) Phoenix connector
\n
• (2) Wall/Speaker-mount Bracket sets
\n
• (1) Interconnect Bracket
\n
• (12) Zip Ties
\n
• (1) Bose logo
\n
• Extra (4) m6 flange nuts
\n
• (8) m6 Hex Head bolts
\n
• (1) yaw bracket
\n

Features

\n
• Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
\n
• Family sound profile with the Panaray MA12EX Loudspeaker
\n
• Twelve (12) x 2.25-inch full-range transducers with 58 Hz – 18 kHz frequency range
\n
• Dante® digital audio network interface and line-level analog input
\n
• Articulated Array® configuration allows wide, 160° horizontal coverage
\n
• Modular design allows building vertical arrays using 1-3 units
\n
• Multiple algorithms for beam steering control – designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
\n
• Supports independent level and EQ control of 2 separate beams per array
\n
• Integrated mounting bracket allows up 90° of horizontal yaw adjustment
\n
• Advanced steering and acoustic coverage prediction using Bose Modeler® software
\n
• System setup, control and monitoring with Bose ControlSpace® Designer™ software
\n
• Available in black or white finish
\n

\n
• Single Module Technical:\n \n
\n
• Single Module Physical:\n \n
