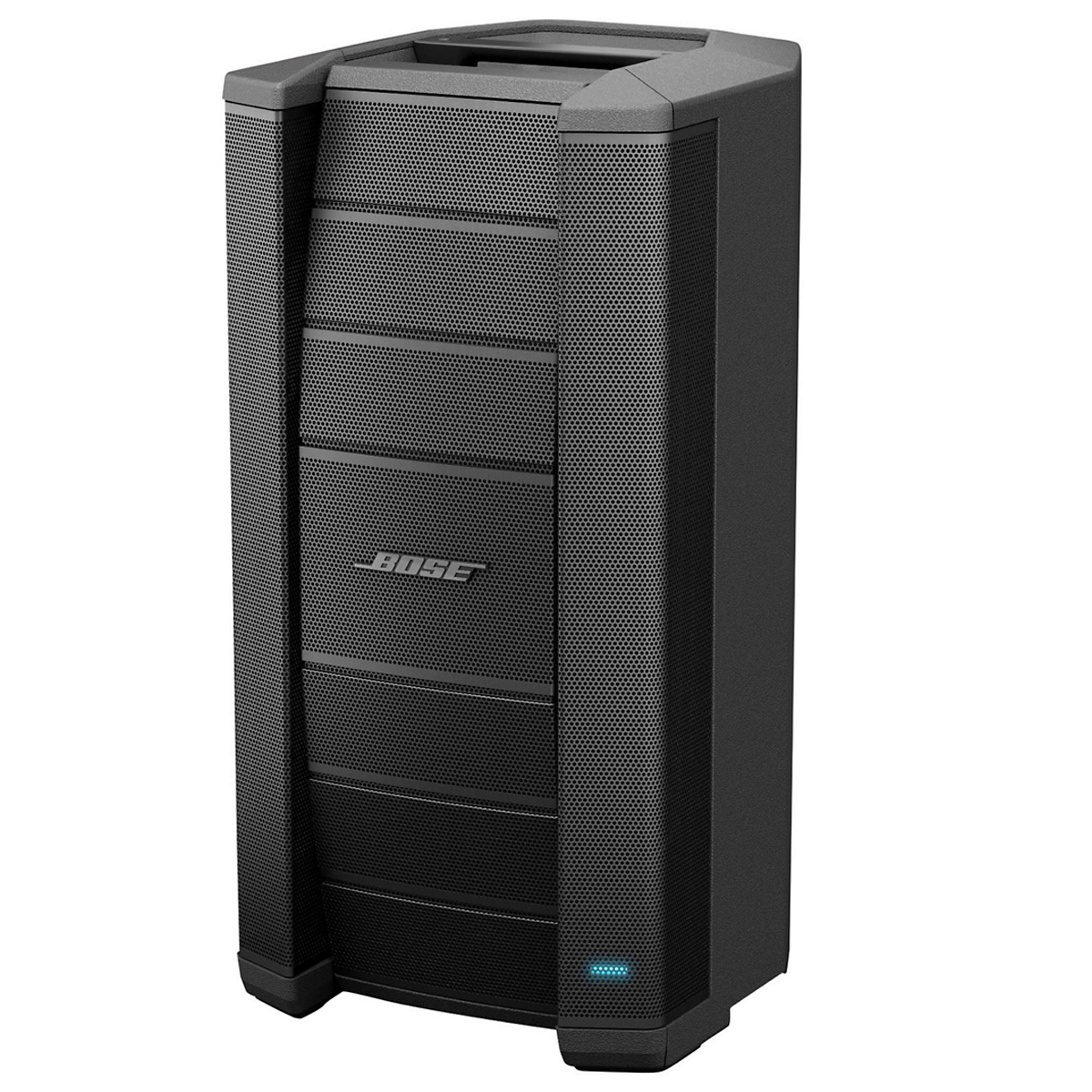

Bose Professional F1 Model 812 Flex Array Loudspeaker

Quantity

Powerful, standalone sound that flexes to meet your coverage needs

the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes.

Flexible Array Technology

This is the first powered portable loudspeaker that lets you control its vertical coverage pattern. Simply push or pull the array into position to create “Straight,” “C,” “J” or “Reverse J” coverage patterns. Once set, the system automatically changes the EQ to maintain optimum tonal balance for each coverage pattern. So whether you’re playing at floor level, on a stage, or facing raked seats or bleachers, you can now adapt your PA to match the room. With the Bose F1 Model 812, your sound stands alone.

Optional high-power F1 Subwoofer

For extended bass response, the Bose F1 Subwoofer, sold separately, packs all the power of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the loudspeaker is stored right in the body of the subwoofer, making setup fast and easy. The stand even includes cable channels to neatly hide the wires. Plus, the loudspeaker and subwoofer feature highly durable enclosures to ensure easy transport and years of reliability.

Great for numerous applications:

Live music performances

Bands of all styles

Solo musicians

Mobile DJs

Houses of worship

Schools and universities

Resorts and hospitality venues

Business presentations

Powerful full-range loudspeaker with 132 dB max SPL and low-frequency performance down t43 Hz (-10 dB)

Portable, standalone design with built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12” high-power woofer

Lower crossover point than conventional loudspeakers for clear and natural vocals even at high volumes

Flexible Array technology: easily adjust coverage pattern — Straight, C, J, or Reverse J — optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more

Automatic EQ adjusts to maintain optimum tonal balance for each coverage pattern

Built-in handles for easy transport and compatible with standard 35 mm speaker stands (sold separately)

Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response

Integrated speaker stand for F1 Model 812

Built-in 1000-watt amplifier

Hidden cable channels for a clean appearance

Built-in handles for easy transport

Specifications

System Performance

System Type: Self powered, two-way

Frequency Response: (±3 dB) 55 Hz - 14 kHz

Frequency Range: (“10 dB) 48 Hz - 16 kHz

Nominal Dispersion: 100 H x 40 V (C-position)

Maximum SPL @ 1 m: 132 dB SPL (peak)

Crossover Frequency: 600 Hz Acoustic 4th order Butterworth

Amplification

System Power: 1000 W

Distortion at Rated Power: 0.1 % Max (30 Hz - 15 kHz)

System Limiter: Dynamic limiter

Power Indicator: Blue LED: system on

Transducers

Driver Compliment: 8 x 2.25" mid-high drivers; 1 x 12" LF

Channels

Signal Indicators: POWER/FAULT, LIMIT, FRONT LED, SIGNAL INPUT

Input Connections: Channel 1: XLR Balanced: Pin 1 (GND), Pin 2 (+), Pin 3 (-) Channel 2: 1/4 TS/TRS, 1ˆ•8 TS/TRS, (2) RCA

Controls: Volume level, Signal input select, Front LED function select, EQ select, Power on/off

Additional Connections

Line Output: XLR balanced

AC Mains: IEC Connector

Physical

Enclosure: High impact composite materials

Grille: Powder-coated perforated steel grille

Dimensions: 26.1" H x 13.1" W x 14.6" D (664.66 x 334.3 x 372.5mm)

Net Weight: 44.5 lbs (20.18 kg)

Power Supply Voltages

Universal AC power rating: 100-240 V 50 / 60 Hz +/- 20 %, 200 W max
