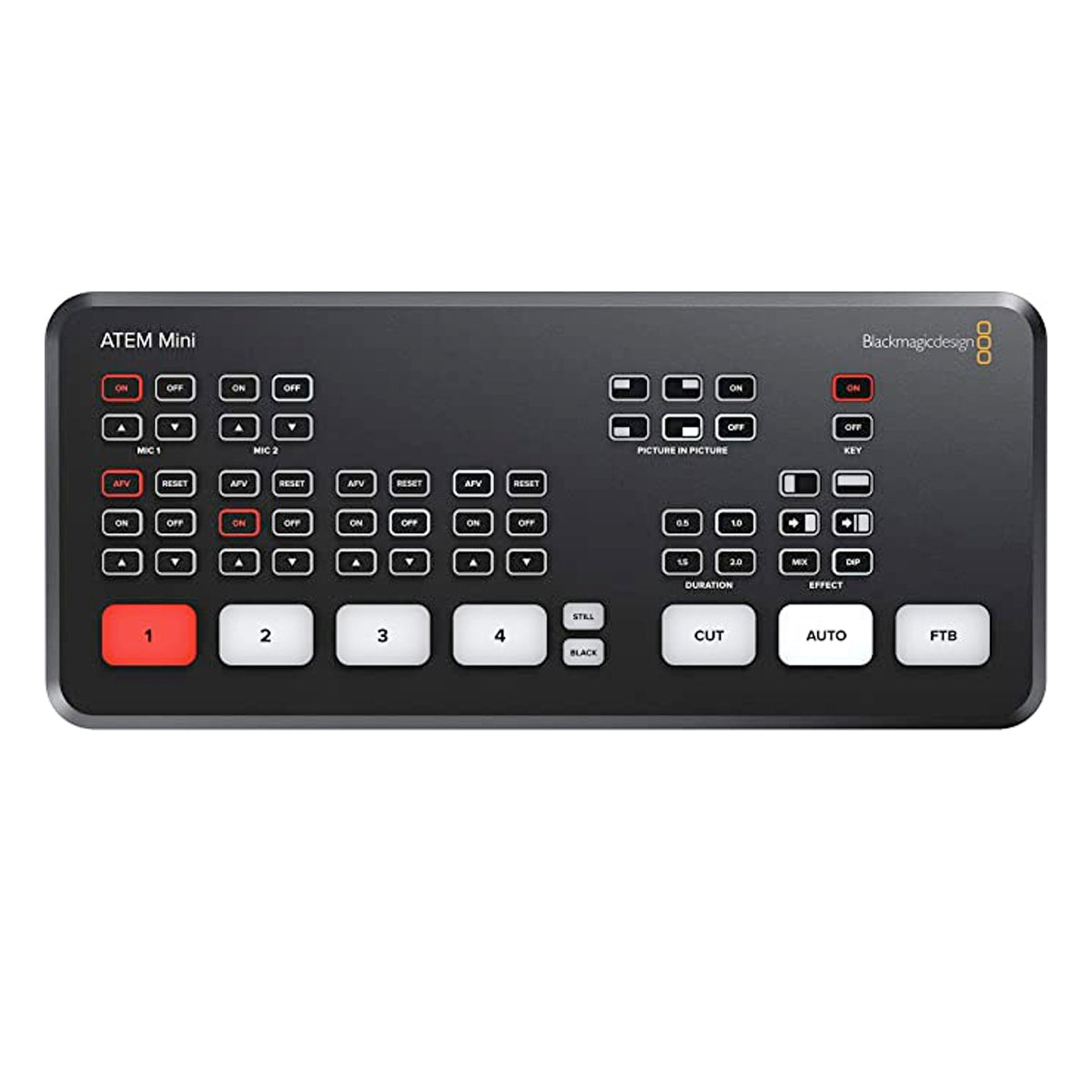

Blackmagic Design Atem Mini | HDMI Live Switcher

Blackmagic Design Atem Mini | HDMI Live Switcher

Blackmagic Design Atem Mini | HDMI Live Switcher

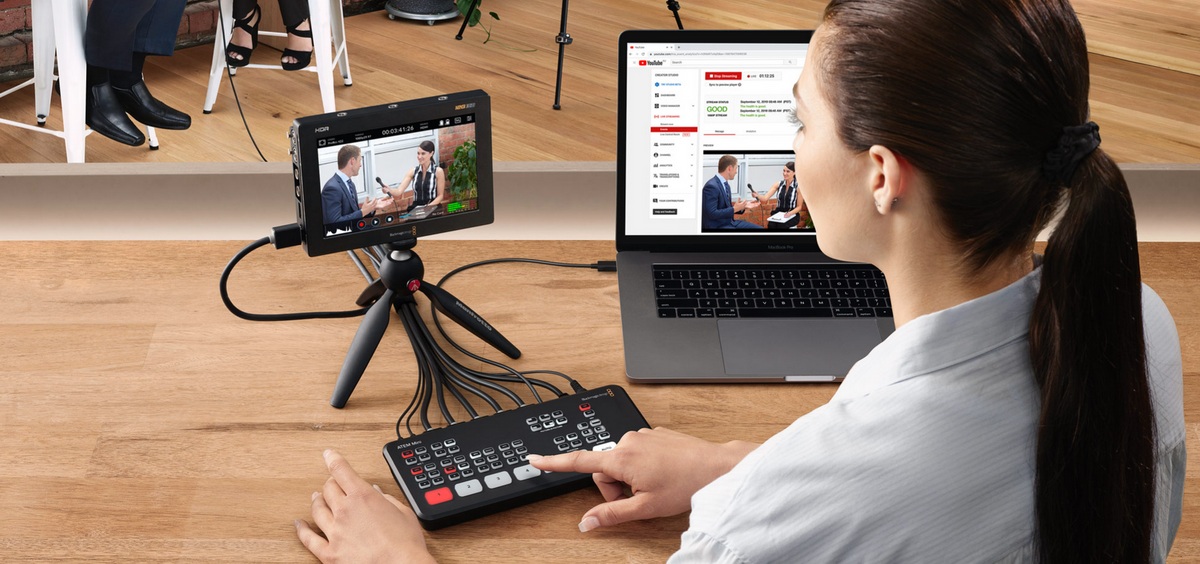

ATEM Mini switchers make it easy to create professional multi-camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect ATEM Mini and you can switch live between 4 high-quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built-in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! All ATEM Mini models have USB that works like a webcam so you can use any streaming software while the ATEM Mini Pro model adds live streaming and recording to USB disks. ATEM Mini even has secret broadcast features built-in so it can do high-end work!

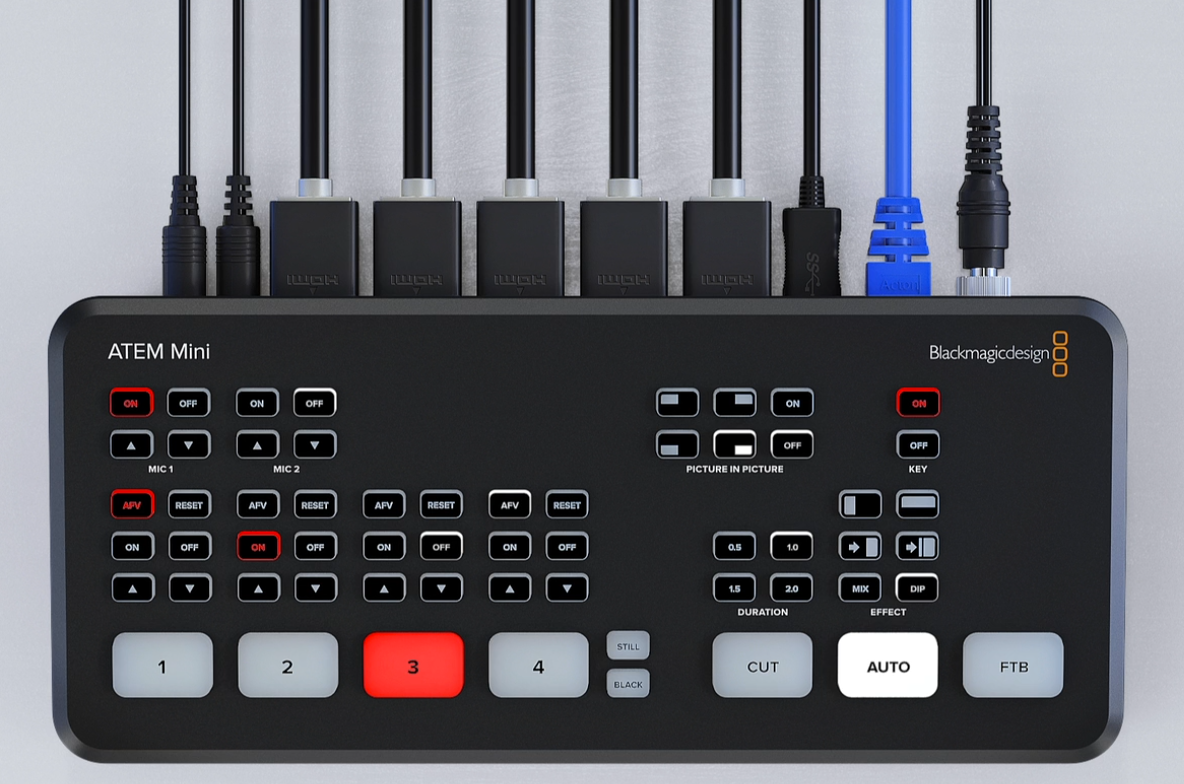

Connections





Total Video Inputs



4





Total Outputs



2





Total Aux Outputs



1





Total Audio Inputs



2 x 3.5mm stereo mini jack.





Total Audio Outputs



None, embedded audio only.





Timecode Connection



None





HDMI Video Inputs



4 x HDMI type A, 10-bit HD switchable.

2 channel embedded audio.





Video Input Re-Sync



On all 4 HDMI inputs.





Frame Rate and Format Converters



On all 4 HDMI inputs.





HDMI Program Outputs



1





Ethernet



Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.





Computer Interface



1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.




ATEM Mini Pro ISO



Standards





HD Video Input Standards



720p50, 720p59.94, 720p60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080i50, 1080i59.94, 1080i60





HD Video Output Standards



1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60





Video Streaming Standards



1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60





Ultra HD Video Standards



None





Video Sampling



4:2:2 YUV





Color Precision



10-bit





Color Space



Rec 709





HDMI Input Resolutions from Computers



1280 x 720p 50Hz, 59.94Hz and 60Hz

1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz

1920 x1080i 50 and 59.94Hz 60Hz





Colorspace Conversion



Hardware based real time.







Product Specifics





Upstream Keyers



1





Downstream Keyers



1





Advanced Chroma Keyers



1





Linear/Luma Keyers



2





Transition Keyer



DVE only.





Total Number of Layers



5





Pattern Generators



1





Color Generators



2





DVE with Borders and Drop Shadow



1





Interface



Minimum monitor resolution of 1366 x 768.







Audio





Audio Mixer



6 input x 2 channel mixer.

Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.

Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.





Analog Input



Unbalanced stereo





Analog Input Delay



Up to 8 frames





Input Impedance



1.8k





Max Input Level



+6dBV





Mic Plug In Power



Available on both 3.5mm mini jack connections.







Streaming





Direct Streaming



ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).







Recording





Direct Recording Video and Audio



USB-C 3.1 Gen 1 expansion port can record directly to external media.





Video Recording



4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.



1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.





Audio Recording



6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.





Switching



Program switching recorded as a DaVinci Resolve project .drp file.





Media Format



Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.







Multi View Monitoring





Multi View Monitoring



1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.





Multi View Video Standard



HD







Media Player





Media Players



1





Channels



Fill and key for each Media Player.





Media Pool Still Image Capacity



20 with fill and key.





Media Pool Still Image Format



PNG, TGA, BMP, GIF, JPEG and TIFF.







Control





Control Panel



Built in control panel. Software control panel with camera control included. Supports optional hardware panel.





Control Panel Connection



Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.





Control Panel Compatibilty



Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.





Control Panel Included



ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.







Software





Software Updates



Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.





Configuration



Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.







Operating Systems




Mac icon

Mac 10.14 Mojave,

Mac 10.15 Catalina or later.




Windows Icon

Windows 10, 64-bit.







Power Requirements





Power Supply



1 x External 12V power supply.





Power Usage



36W







Physical Specifications


ATEM Mini Pro ISO



Environmental Specifications





Operating Temperature



5° C to 40° C (41° - 104° F)





Storage Temperature



-10° to 60° C (14° to 140° F)





Relative Humidity



0% to 90% non-condensing







What's Included




ATEM Mini Pro ISO



External 12V DC power supply with international socket adapters
