Audio Technica ATW-1101/L - Lavalier System | Receiver

$4,000.00

Quantity

Audio Technica’s System 10 is a digital high fidelity wireless system designed to provide performing musicians and presenters with advanced 24 bit operation, easy setup, and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy to read digital ID display. System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity. Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW R1100 receiver and either a bodypack transmitter or handheld microphone/ transmitter. The ATW R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

Digital 24 bit/48 khz wireless operation for ultimate sound quality and dependable performance

2.4 ghz range: Completely free from tv interference

Automatic frequency selection for seamless, interference-free operation

Extremely easy operation with instantaneous channel selection, sync, and set up

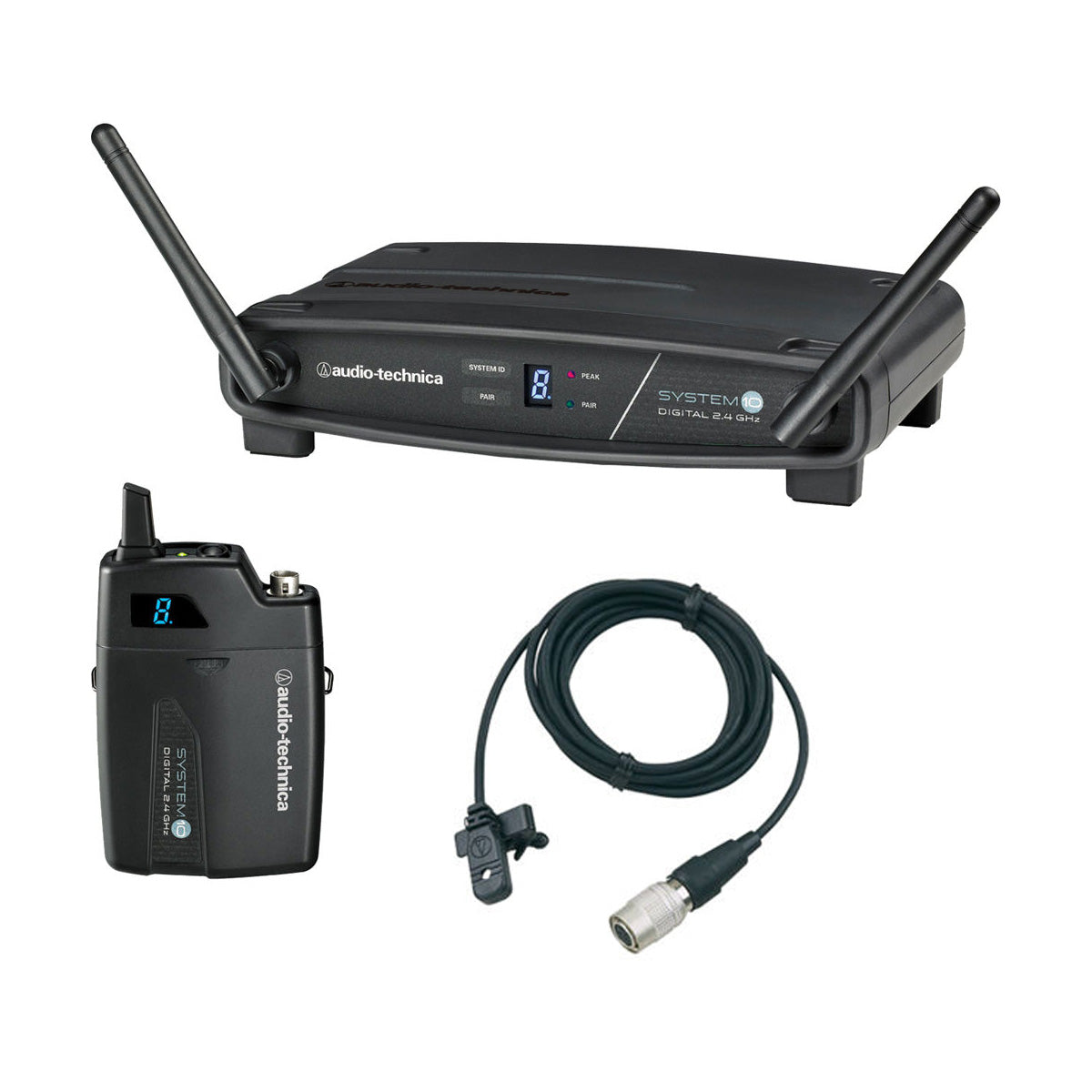

Includes atw r1100 receiver and atw t1001 unipak transmitter with mt830cw omnidirectional lavalier microphone

Handheld Transmitter
Operating Frequencies	2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response	20 Hz to 20 kHz Depending on microphone type
Operating Range	30 m (100') typical Open range environment with no interfering signals
Total Harmonic Distortion	<0.05% typical
Operating Temperature Range	0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
RF Power Output	10 mW
Spurious Emissions	Following federal and national regulations
Battery Type	Two 1.5V AA not included
Battery Life	>7 hours (alkaline) Depending on battery type and use pattern
Dimensions	254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight	280 grams (9.9 oz) without batteries
Accessories Included	AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output	10 mW
Battery Life	>7 hours (alkaline) Depending on battery type and use pattern
Battery Type	Two 1.5V AA not included
Dimensions	70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Input Connections	Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight	100 grams (3.5 oz) without batteries
Spurious Emissions	Following federal and national regulations
Receiver
Receiving System	Diversity (frequency/time/space)
Maximum Output Level	XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply	100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Operating Temperature Range	40° F (4° C) to 110° F (43° C)
Dimensions	190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Weight	290 grams (10.2 oz)
Accessories Included	Power supply
