Audio-Technica AT8024 Stereo/Mono Camera-Mount Microphone
Audio-Technica AT8024 Stereo/Mono Camera-Mount Microphone
Regular price
$1,800.00 TTD
Regular price
Sale price
$1,800.00 TTD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

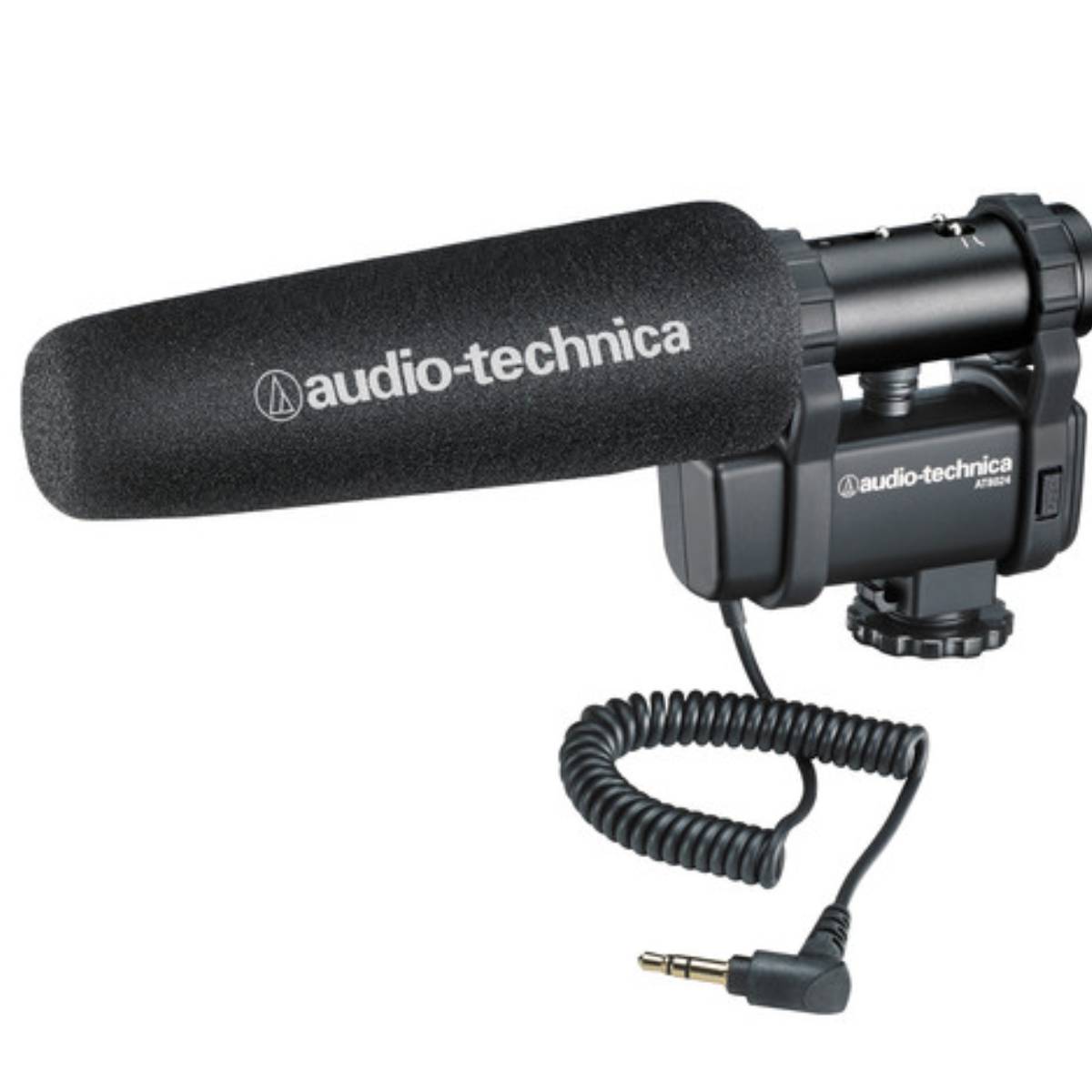

The Audio-Technica AT8024 is a versatile camera-mount condenser microphone designed for use with DSLRs and camcorders. It is known for its ability to switch between mono (line-cardioid) and internally matrixed mid-side stereo modes, allowing users to focus on a specific subject or capture a wider, more immersive sound field.
Dual Pickup Modes:
Mono (Line-cardioid): Ideal for dialogue and interviews, providing high off-axis rejection to isolate the subject.
Stereo (Mid-side): Captures realistic spatial audio for sports, events, and environmental recording.
Audio Control Switches:
Three-position Attenuator: Includes settings for 0 dB, -10 dB, and -20 dB to handle varying volume levels and prevent distortion.
Low-Frequency Roll-Off: A switchable 80 Hz high-pass filter reduces unwanted low-frequency noise like wind or mechanical vibration.
Physical Build:
Integral Shock Mount: Rubber mounts isolate the mic from camera handling noise.
Connectivity: Features a permanently attached coiled cable with a 3.5 mm right-angle plug.
Power: Operates on a single AA battery for approximately 80 to 100 hours, with a two-color LED power indicator.
Technical Specifications
Based on manufacturer data from Audio-Technica:
Specification Details
Frequency Response 40 - 15,000 Hz
Maximum SPL 128 dB SPL (148 dB with 20 dB pad)
Dynamic Range 106 dB (Mono) / 104 dB (Stereo)
Signal-to-Noise Ratio 72 dB (Mono) / 70 dB (Stereo)
Weight 114 g (4.0 oz)
Dual Pickup Modes:
Mono (Line-cardioid): Ideal for dialogue and interviews, providing high off-axis rejection to isolate the subject.
Stereo (Mid-side): Captures realistic spatial audio for sports, events, and environmental recording.
Audio Control Switches:
Three-position Attenuator: Includes settings for 0 dB, -10 dB, and -20 dB to handle varying volume levels and prevent distortion.
Low-Frequency Roll-Off: A switchable 80 Hz high-pass filter reduces unwanted low-frequency noise like wind or mechanical vibration.
Physical Build:
Integral Shock Mount: Rubber mounts isolate the mic from camera handling noise.
Connectivity: Features a permanently attached coiled cable with a 3.5 mm right-angle plug.
Power: Operates on a single AA battery for approximately 80 to 100 hours, with a two-color LED power indicator.
Technical Specifications
Based on manufacturer data from Audio-Technica:
Specification Details
Frequency Response 40 - 15,000 Hz
Maximum SPL 128 dB SPL (148 dB with 20 dB pad)
Dynamic Range 106 dB (Mono) / 104 dB (Stereo)
Signal-to-Noise Ratio 72 dB (Mono) / 70 dB (Stereo)
Weight 114 g (4.0 oz)
